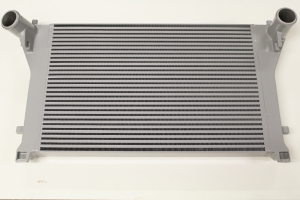

Intercooler Kit for Audi A3 8V, Seat Leon 5F, Skoda Octavia, Golf 7 GTI 2.0 TFSI 50mm plug and play with certificate of conformity § 19.3

- Intercooler Kit for Audi A3 8V, Seat Leon 5F, Skoda Octavia, Golf 7 GTI 2.0 TFSI 50mm plug and play with parts certificate § 19.3

Technical Specifications:

- Cast aluminum tanks

- Bar & Plate core

- Core size 630x410x50mm

- Overall dimensions with tanks 860x410x160

- Connections 60mm

- Mounted to the original mounting points

- With parts certificate per § 19.3 StVZO for a hassle-free registration

Suitable for:

- VW Golf VII, Model AU - 2.0TFSI
162kW / 169kW
Incl. parts certificate (§19.3)

With adaptation work also suitable for the following models:

- Audi A3/S3, Model 8V, Engine code CJXB + CJXC 206+221kW
- Audi TT, Model 8S, Engine code CNTC + CHHC + CJXF + CJXG
162+169+210+228kW
- Seat Leon, Model 5F, Engine code CJXA + CJXE 195+206kW
- Skoda Octavia III, Model 5E, Engine code CJSA + CJSB 132kW

Without adaptation work also for the following models:

- Seat Leon, Model 5F, Engine code CJSA 132kW
- Skoda Octavia III, Model 5E, Engine code CHHB 162kW
- Skoda Superb III, Model 3V, Engine code CHHB + CJXA 162+206kW
- VW Golf VII , Model AU, Engine code CJXB + CJXC 213+221kW
- VW Golf Alltrack, Model AU, Engine code CJSB 132kW
- VW Golf VII, -  Variant, Model AUV, Engine codes CNTA + CJXB + CJXC
155+206+221kW
- VW Passat, Model B8, Engine code CJSA + CJSC + CHHB 132+162kW
All mentioned models without parts certificate (§19.3)

Description:

The upgrade intercooler is installed in the front, between turbocharger and intake manifold. It is simply exchanged 1:1 with the original. The purpose of an intercooler is to cool down the air heated by the turbocharger. By cooling down the compressed air, more air mass can enter the combustion chamber at the same volume, allowing more fuel to be burned, thus increasing power and efficiency. The lower the charge air temperature, the lower the thermal load on the engine and the turbocharger, as it requires less rpm for the same mass of air. This also reduces fuel consumption and slightly improves exhaust values, provided the control unit is adjusted accordingly. It is important that the intercooler is exposed to as much airflow as possible. The coolers can be used for turbocharged diesel and gasoline engines. The offered I/C is completely made of aluminum with cast tanks and has a Bar`n Plate core, ideal for motorsports and tuning. Each intercooler is tested up to 5 Bar before delivery
