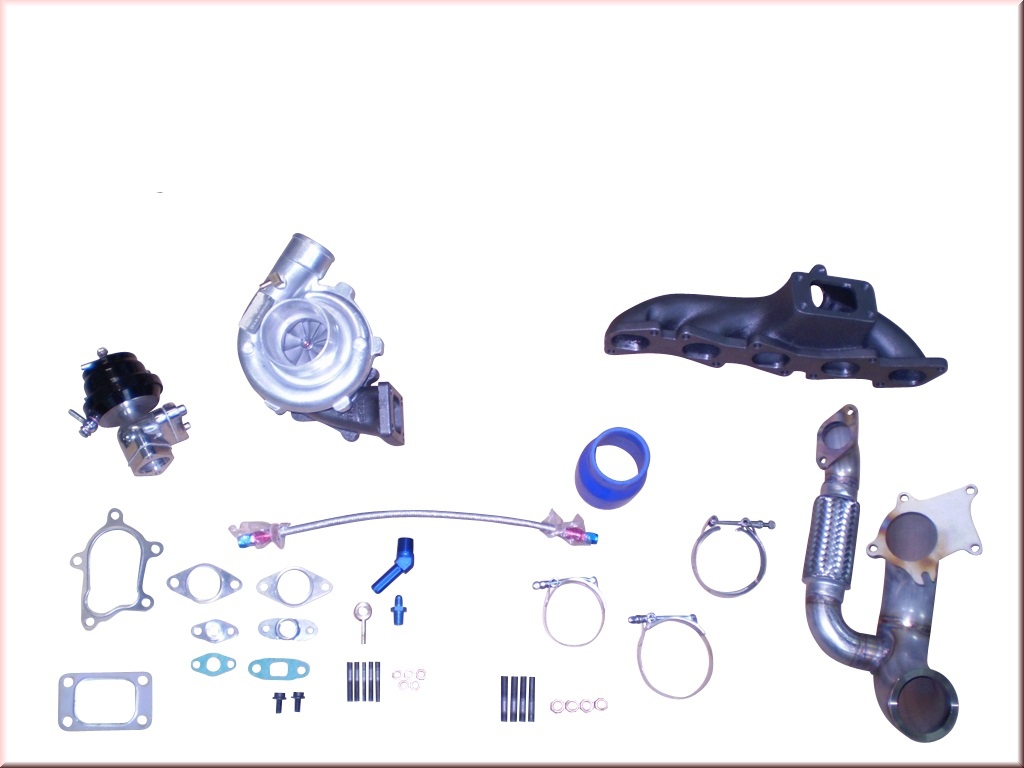

Turbo kit Fiat Coupe 20v Turbo up to 320HP T3/T60 + manifold + wastegate

Delivery scope:

  1x Metal gasket for T3 flange
  2x Metal gasket for 38mm wastegate
  1x Gasket for oil return T3/T4
  1x Clamp HD-wideband clamp 87-79mm for 76mm silicone
  1x Clamp V-band 63.5mm V2A
  1x Straight silicone reducer 76x60mm
  1x Turbocharger T3/T60 T3/T4 60A/R compressor side - 48A/R exhaust side
  1x Wastegate 38mm aluminum CNC-machined with accessories 0.4 bar
  1x Ring gauge M12 to D04
  1x Clamp HD-wideband clamp 71-63mm for 60mm silicone
  1x Silicone vacuum hose ø 6mm length
  1x Metal gasket for manifold flange T3/T4, GT30, GT35 5-hole
  5x Stud bolt M10x40
  4x Stud bolt M8x35
  1x Adapter for oil feed for T3/T4 + GT30 + GT35 with 3mm bearing
  1x Oil feed line 40cm with D04 connectors
  5x Copper nut M10 Copper nut with 17mm wrench size
  4x Copper nut M8 Copper nut with 13mm wrench size
  1x Turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection
  1x Adapter 45° 1/2 NPT > hose connection 15mm
  1x Elbow is delivered in individual parts for self-welding. Photo is for illustrative purposes only

Technical data turbocharger:

- Compressor housing A/R 60

- Compressor wheel 71>54.1mm

- Turbine housing 48 A/R (for quick response)

- 360° racing bearing

- T3 flange (hole dimensions measured in the middle: 86x45mm)

- oil-cooled

- water-cooled

- Shaft is finely balanced

- Up to approx. 1.6 bar

compatible with:

- all Fiat Coupe/Marea/Bravo 20vt Turbo 5-cylinder, including vehicles with air conditioning. To achieve the power of approx. 320 hp, larger injectors, e.g. 440ccm, fuel pump 255L/hr are required, and the software (chip) must be adjusted.
