Turbo kit Fiat Coupe 20v Turbo up to 400PS GT3076 + exhaust manifold + wastegate up to 400PS

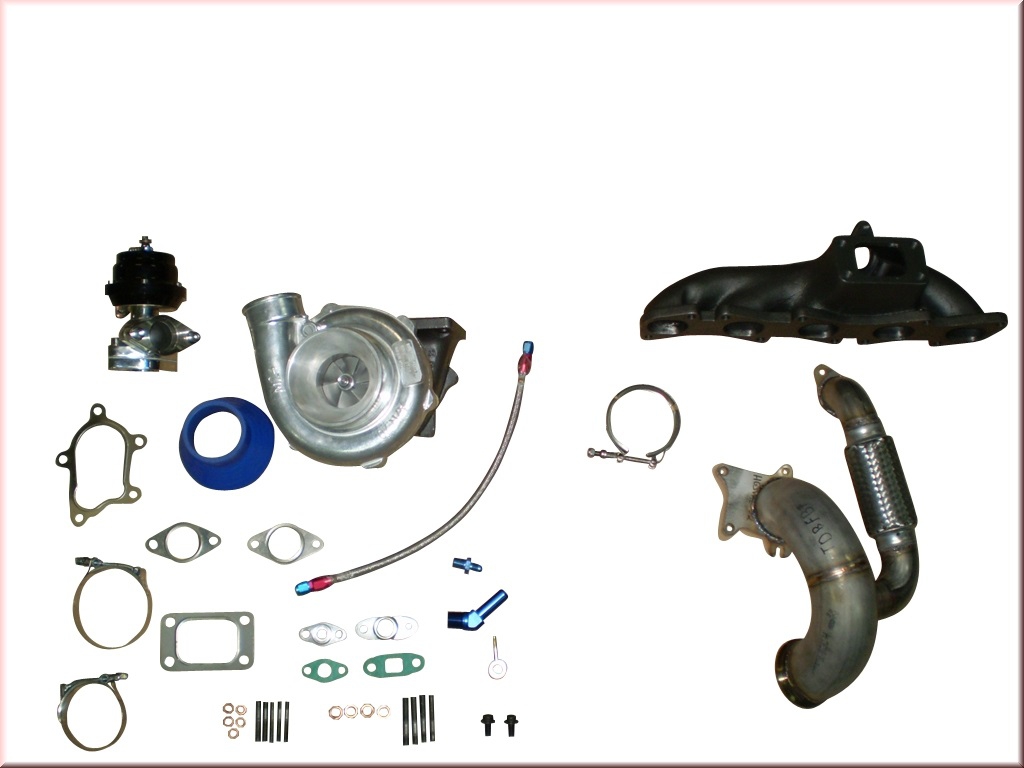

Delivery contents:

  1x Metal gasket for T3 flange
  2x Metal gasket for 38mm wastegate
  1x Gasket for T3/T4 oil return
  1x HD wideband clamp 116-104mm for 102mm silicone
  1x V-band clamp 63.5mm V2A
  1x Turbocharger GTR-485 (GT3076, GT30)  70 A/R compressor side - 63 A/R exhaust side
  1x 38mm CNC-machined aluminum wastegate with 0.4 bar accessory
  1x Ring gauge M12 to D04
  1x HD wideband clamp 71-63mm for 60mm silicone
  1x Silicone vacuum hose ø 6mm length
  1x Metal gasket for T3/T4, GT30, GT35 manifold flange 5-hole
  5x M10x40 stud bolts
  1x Straight silicone reducer 102x60mm
  4x M8x35 stud bolts
  1x Adapter for oil inlet T3/T4 + GT30 + GT35 journal bearing 3mm
  1x 40cm oil inlet line with D04 fittings
  5x M10 copper nut with 17mm wrench size
  4x M8 copper nut with 13mm wrench size
  1x Turbo manifold for Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection
  1x 45° adapter 1/2 NPT > 15mm hose connection
  1x Elbow piece delivered in individual parts for self-welding. Photo is for illustration purposes only

Technical data turbocharger:

- Compressor housing A/R 70 on the outside

- Compressor wheel 76>56.5mm

- Turbine housing 63 A/R

- 360° race bearing

- T3 flange (hole dimensions measured at the center: 86x45mm)

- oil-cooled

- water-cooled

- Shaft is finely balanced

- up to approx. 1.8 bar

Fitment:

- All Fiat Coupe/Marea/Bravo 20vt Turbo 5-cylinder models, including vehicles with air conditioning. To achieve the power of approx. 400HP, larger fuel injectors (e.g. 440ccm), a fuel pump with a flow rate of 255L/hr, and software tuning (chip) are required.
