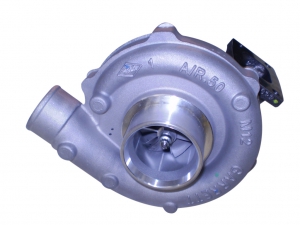

Garrett GT3071R - 836027-5002S 86A/R ball bearing

Scope of delivery:

- Original Garrett GT3071R Turbocharger 836027-5002S

Technical Specifications:

- Air inlet housing 50A/R - Trim 56

- Turbine housing 86A/R - Trim 90

- T25 flange

- Oil cooled

- Water cooled

- Dual ball-bearing

- 700382-5020S replaced by 836027-5002S

- Supports 310-475 horsepower

- Internal wastegate (actuator not included)

Suitable for:

- Engines with a displacement of 1.8L to 3L

Description:

You will receive an original Garrett turbocharger from us. We source these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, meaning you always get a top product. Among others, a 1000-hour durability test on an engine in a Garrett Engineering Laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked, as well as material fatigue, a vibration test is conducted, etc.

The Garrett GT and GTX series are all dual ball bearing, precision-balanced, and oil and water cooled. There is also the older generation T series which are mostly sleeve bearing. The GTX series differs from the normal GT in that these have a special, larger compressor wheel with more blades that leads to more power and slightly better response. It is important that ball bearing turbochargers do not receive too much oil pressure. Therefore, an oil restrictor with a 0.9mm bore is used. A ball-bearing turbo typically responds about 400-500 RPM sooner than a sleeve-bearing one. When selecting the right turbocharger, ask us or verify directly on the manufacturers website http://turbobygarrett.com/turbobygarrett/turbochargers. There you will find all details such as exhaust housing options, product description, performance map, and drawings.
