Turbokit / Turbocharger Garrett GT28RS <360HP for Fiat/Lancia 16v 8v Turbo Delta Integrale

For a larger view click on the thumbnail

1.950,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cart Check out withPayPal

Shipping time: 3-4 Tage

Product no.: 420201

GTIN/EAN: 4251277415400

Print datasheet

Details
Customer-tip

Products description

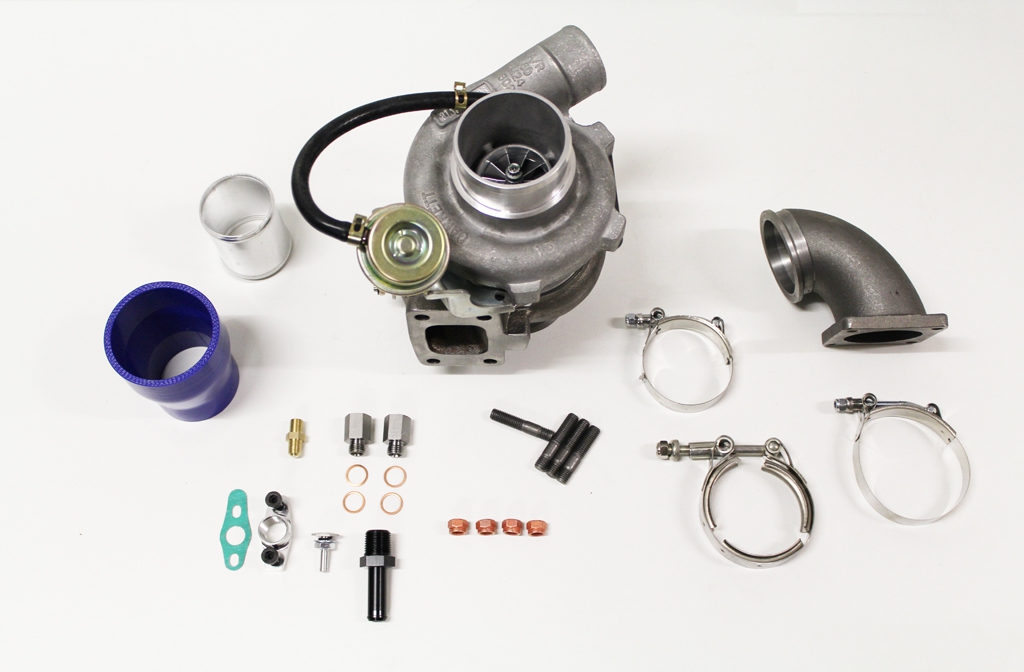

Scope of Delivery:

1. Garrett GT2860RS - 739548-1 GT28RS 63 or 82A/R with T3 flange and 5-hole downpipe flange 440127
2. Clamp HD-wideband clamp 87-79mm for 76mm silicone from stainless steel 19mm wide
3. Clamp V-Band 63.5mm 350106
4. Silicone reducer straight 76x60mm inner diameter blue L 100mm 4 ply 5mm wall thickness 380180
5. Wastegate internal with 5-hole flange plate for T3/T4 + GT30 + GT28 turbocharger
6. Clamp HD-wideband clamp 71-63mm for 60mm silicone from stainless steel 19mm wide
7. Elbow cast for Fiat/Lancia 16v from turbocharger V-Band 63.5mm to 4-hole
8. Adapter M14 male thread to M16 female thread

Technical Specifications Turbocharger:

- Compressor housing external A/R 60

- Turbine housing ATP optional 63 A/R or 82A/R

- Ball bearing

- T3 Flange (Hole dimensions measured in the center: 86x45mm)

- Oil cooled

- Water cooled

- Up to approx. 1.6 Bar

- Up to 360HP

Suitable for:

- Fiat/Lancia 16v Turbo 4 cylinder 2.0 Liter.

- Fiat/Lancia 8v Turbo with cat 4 cylinder 2.0 Liter.

The old turbo can be replaced by the new one directly. No welding required. The oil and water connections fit from the old turbo, however, the oil feed line should definitely be renewed. The original intercooler must be relocated since the intake has 76mm and the original intake hose no longer fits.

We would like to point out that the installation of this item represents a modification that results in the vehicles operating license expiring according to the StVZO. No use on public roads is permitted.

Potentially, the turbo kit can be registered through a successful emissions, noise, and performance measurement according to §21 StVZO.
